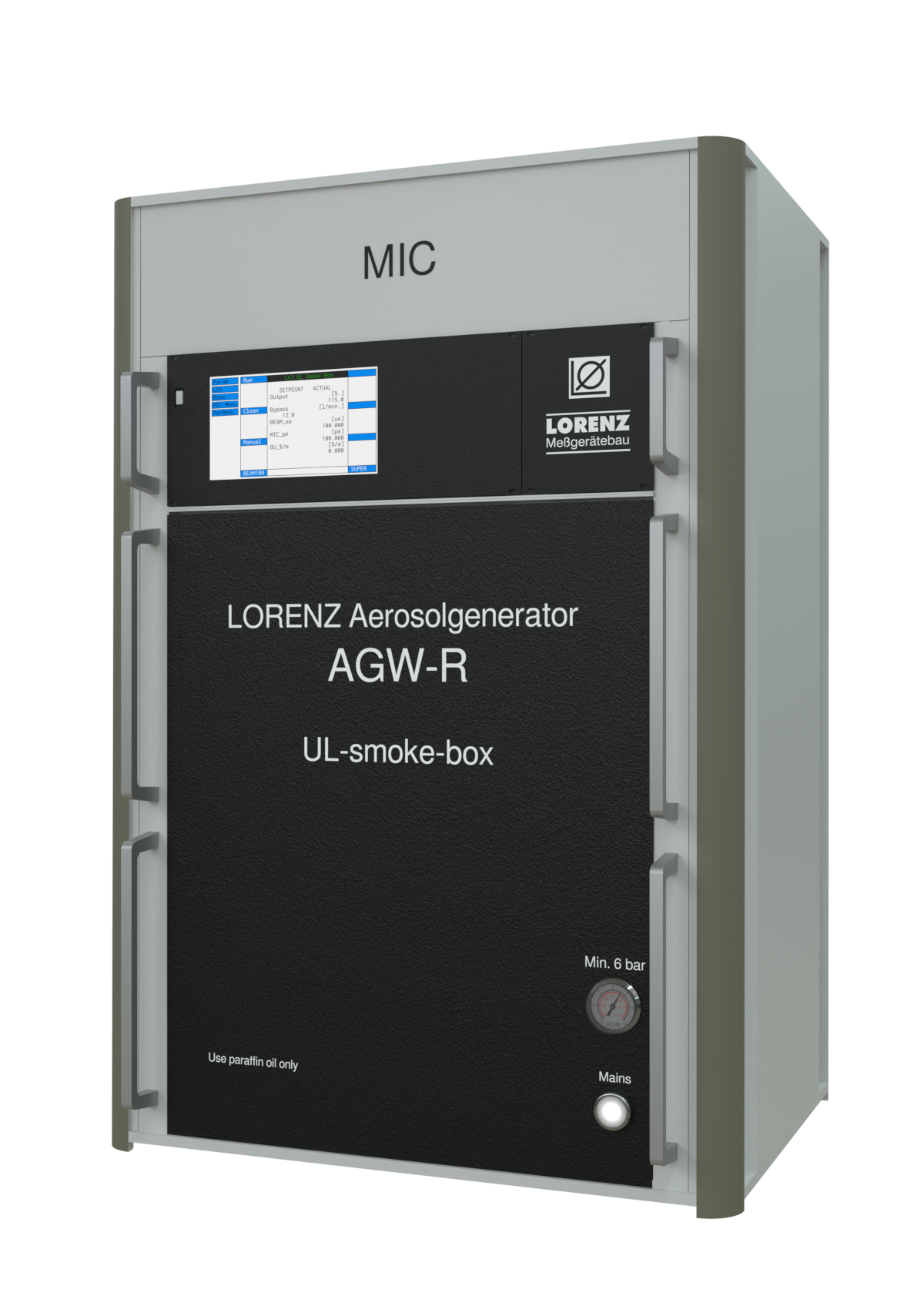

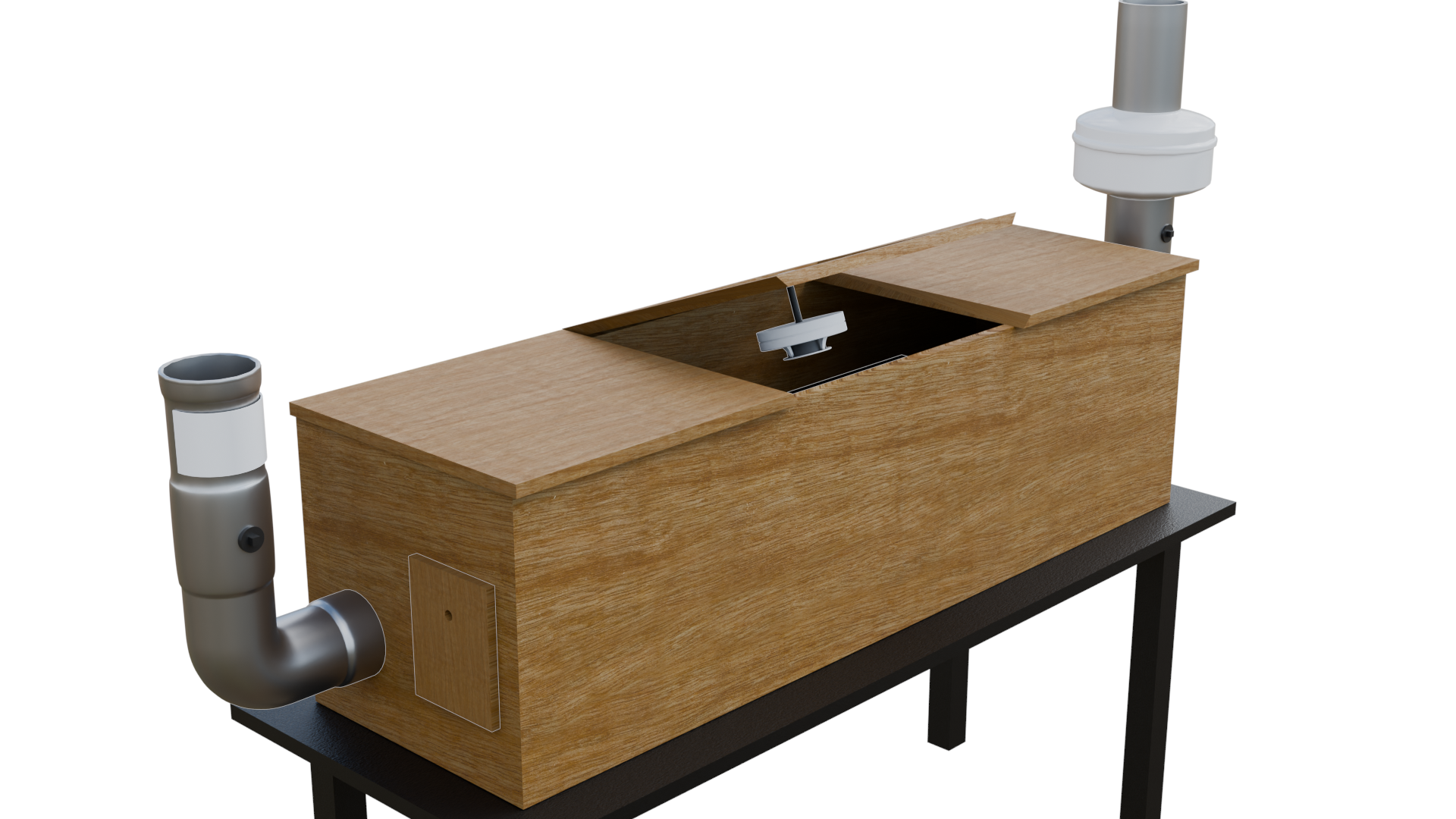

Our aerosol generator AGW is available in an UL version, generating a standards-compliant aerosol for “smoke box” tests (UL 217). A flexible set of extensions for your (probably existing) smoke box includes e.g. automatic controlled flaps for cleaning without any manual interaction.
The paraffin oil aerosol is injected into the box in such a manner, that the required beam- and MIC-curves are generated.
Your smoke box however remains fully functional for regular tests with burning wick. The PC software can still be used to record the data and initiate the cleaning cycle.
- Clean testing without smoke or soot
- PC software for data recording and control
- Run multiple tests without user interaction
- Automatic measurement and cleaning
Optional accessories are available on request:
- Beam intensity regulation
- Air velocity regulation
- Automatic rotation unit for the smoke detector
- Support for Ethernet MIC

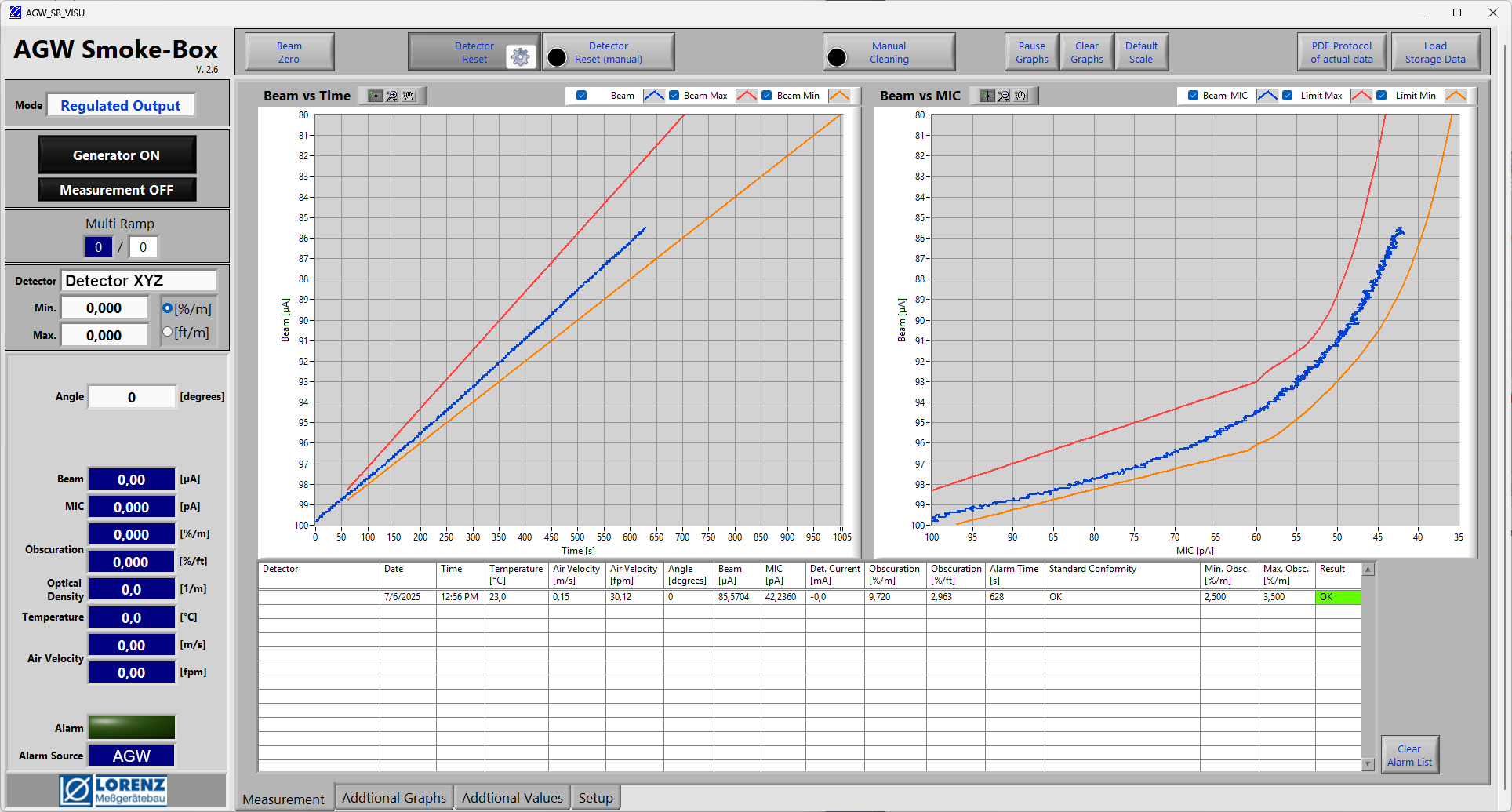

The PC software offers the following features:
- Set up and start/stop tests
- Record all relevant test parameters
- Result table with recorded alarm values
- Multiple alarm sources possible (electric, acoustic)
- Customizable PDF test report generation
- Data export to e.g. SQL database
